Programming Overview

Overview

The main component of the TMfS18 Trip End Model is coded in Python. This section describes the coding of the program in Python.

The Trip End Model was coded in Python version 3.7.5 and any updates or amendments to the software should be undertaken using this, or a later a version of the software.

Coding

The main function of the Python files are as follows:

  • TELMoS_main.py - replaces the "main" sub-routine in the TMfS14 VB code which calculates the new TMfS trip ends. The methodology is as follows:
    • Read in all "Factors" and "Delta" files to the expected format;
    • Calculate attraction factors and attraction growth factors;
    • Calculate production factors and production growth factors;
    • Read in the pivot year TMfS calibrated trip ends (*.CTE and *.TOD);
    • Add in the airport growth;
    • Combine the NTEM purposes to TMfS purposes; and
    • Create and write out the new TMfS trip ends (*.CTE and *.TOD).
  • TELMoS_goods.py - replaces the "goods" sub-routine in the TMfS14 VB code which calculates the new trip ends for goods vehicles. The methodology is as follows:
    • Read in the goods "Delta" files;
    • Read in the pivot year goods matrices;
    • Create forecast commodity matrices; and
    • Create and write forecast TMfS goods vehicle trip end files.
  • TELMoS_addins.py - replaces the "addins" sub-routine in the TMfS14 VB code which calculates the new trip ends for external zones. The methodology is as follows:
    • Read in the pivot year add-in matrices;
    • Read in and apply the NRTF factors; and
    • Create and write forecast TMfS add in trip end files.
  • TELMoS_script.py - is the script that can be run from command-line for a full run of each part of the Trip End Model;
  • gui.py and widget_templates.py - creates a graphical user interface to enter the arguments for the Trip End Model and show a log of the process; and
  • data_functions.py - other functions used in the process.

Graphical User Interface

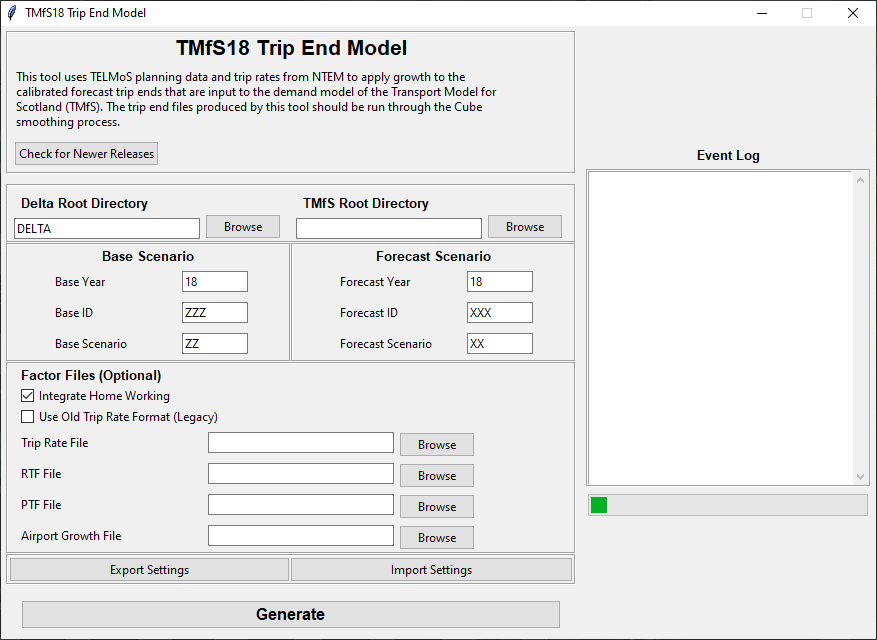

The GUI in-use will look similar to the following:

Options that have not been discussed in the previous sections include:

  • Export/Import Settings - allows the user to save and load all settings in the GUI;
  • Check for Newer Releases - opens the GitHub repository for the Trip End Model.
